Завод по производству гипохлорита кальция

Гипохлорит кальция
Преобразование промышленных процессов с помощью точной и Инновационная химия

Введение to Calcium Hypochlorite

Calcium hypochlorite (Ca(OCl)₂) is a solid, chlorine-based disinfectant and strong oxidizing agent. Commercial grades typically contain 65–70% available chlorine. It is widely used in swimming pool sanitation, drinking water and wastewater treatment, industrial disinfection, and selected bleaching applications.



When dissolved in water, calcium hypochlorite releases hypochlorous acid, which provides antimicrobial activity. Its effectiveness depends on concentration, pH, contact time and water quality. Safe handling and appropriate dosing are essential.

LUVA Раствор гипохлорита кальция

main equipment

Chlorination Reactor

The reactor is designed for efficient heat removal, precise temperature control and regulated chlorine dosing. These features help limit side reactions and improve chlorine utilization. Titanium is used for selected wetted components where compatible with process conditions.

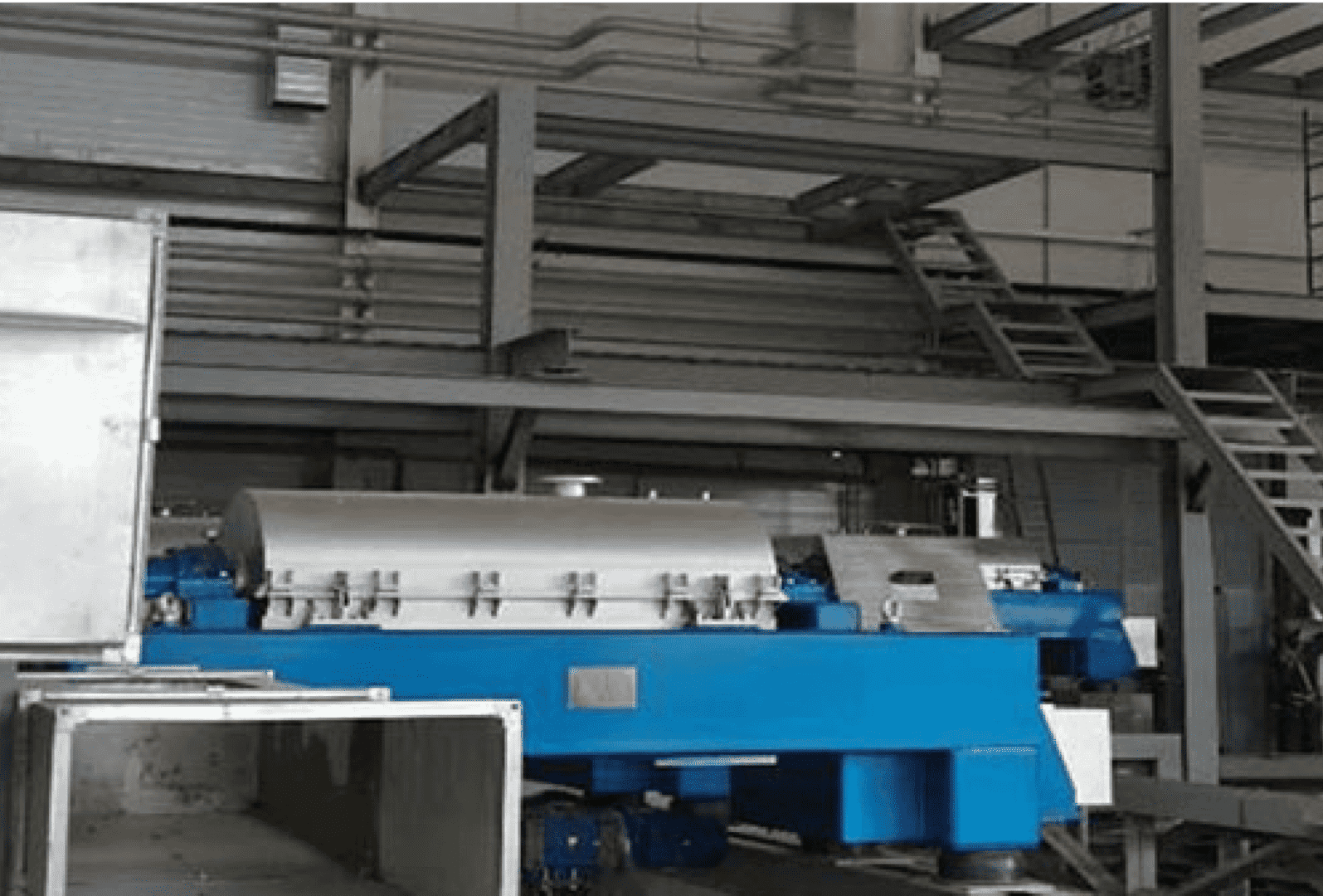

Центрифуга

The enclosed centrifuge provides efficient solid-liquid separation and reduced residual moisture in the recovered solids. Its compact design supports downstream drying while minimizing material exposure and leakage.



Main Parameters of the Calcium Hypochlorite Plant

LUVA’s process integrates batch crystallization, salt recovery and mother liquor recycling to improve resource utilization and reduce waste streams. The following figures are reference design values, subject to project-specific requirements.



Raw Material Consumption
СырьеЕдиницаReference Value
Хлорt/t Product≤ 0.95
Каустическая сода (100%)t/t Product≤ 0.48
Гашеный лаймT/T продукт≤ 0.8



Utility Requirements
UtilityЕдиницаReference Value
ЭлектричествоkWh/T product≤ 720
Технологическая водаt/t product≤ 2.5
Steam for air heatingkg/h4,500
Cooling water circulationt/t product≤ 150
Горячая водаt/t product≤ 50
Воздух для приборовNm3/h≤ 60
Chilled brine circulation (-15 ℃ to -10 ℃)t/t product≤ 100
Chilled water circulation (7–12 °C)t/t product≤ 100
Cooling water circulation (32–42 °C)t/t product≤ 80

Advantages of LUVA's Calcium Hypochlorite Process

Salt Recovery

In LUVA’s proposed process, 32% caustic soda solution, mother liquor and chlorine are processed under controlled reaction and cooling conditions. Sodium chloride crystals are recovered by centrifugation.



Batch crystallization helps improve crystal-size consistency and facilitates downstream separation and drying. Recovered salt may be reused in chlor-alkali production if it meets the required purity specifications.

Mother Liquor Recovery

In the reference process, mother liquor contains approximately 20% NaCl and 6–10% Ca(OCl)₂. Recycling this stream recovers useful components and reduces the volume of residual bleach liquor.



LUVA’s published design targets a reduction in bleach-liquor output from approximately 4.8 to 2.5 tonnes per tonne of finished product.

Key Features of LUVA's Proposed Plant

Long Equipment Service Life

Selected equipment is designed for a 20-year service life, subject to operating conditions, material compatibility and maintenance.

Оптимизированная конструкция процесса

Integrated heat management, material recovery and process control are designed to improve resource efficiency and reduce operating costs.

DCS Automation

A distributed control system (DCS) provides centralized monitoring, process control and operating data management.

Process Safety

Chlorine leak detectors, alarms and interlocked shutdown functions support plant safety. Equipment materials and protective systems are selected according to process conditions and applicable safety requirements.

Quality and HSE Management

LUVA applies quality control procedures throughout project execution and provides health, safety and environment (HSE) training for plant personnel.

Lifecycle Support

LUVA provides after-sales services, maintenance assistance and remote technical support throughout plant operation.

Приложения

Swimming Pool Water Treatment

Calcium hypochlorite is widely used to maintain effective chlorine residuals and control microbial contamination in swimming pools and spas.

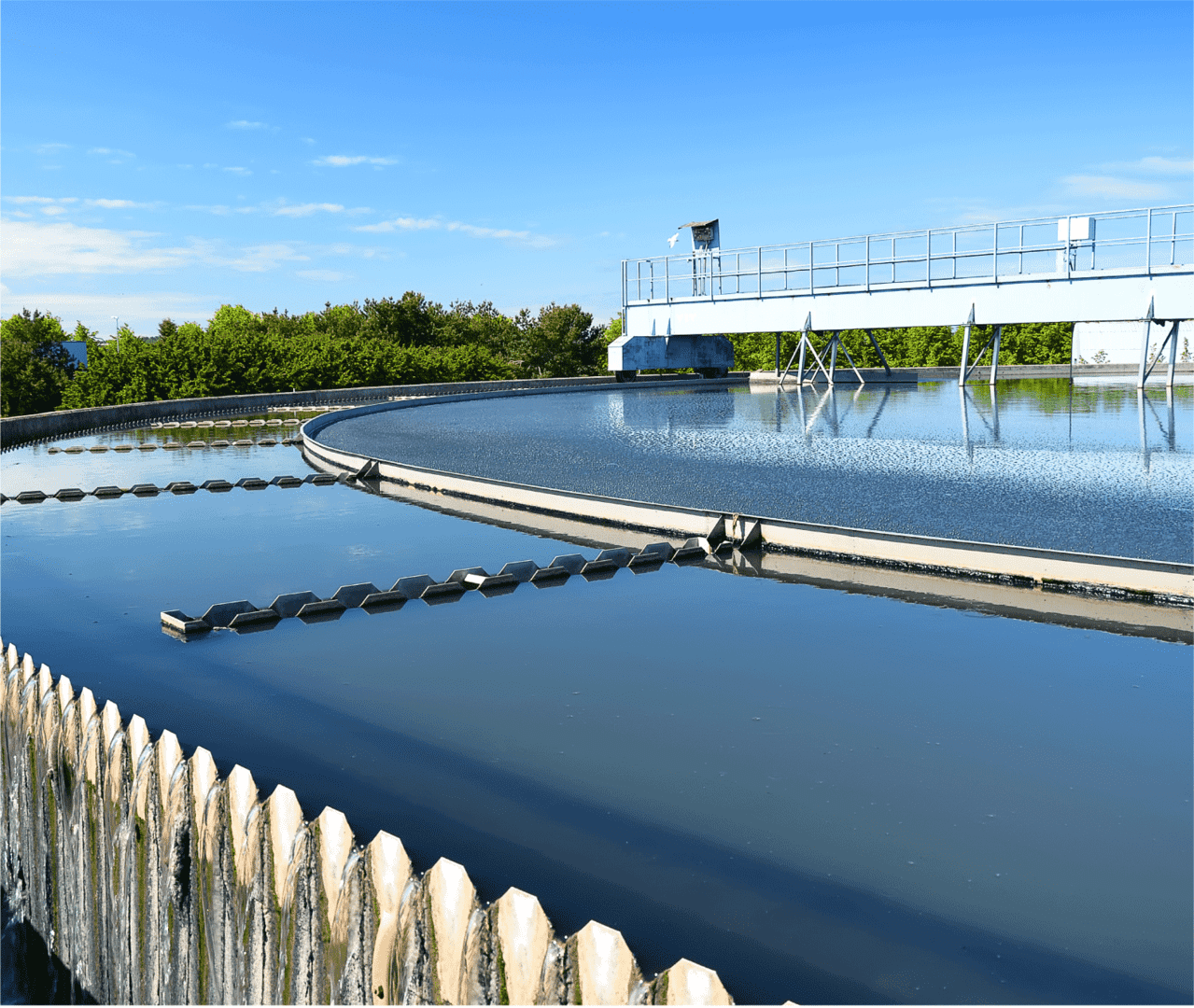

Очистка сточных вод

It is used for wastewater disinfection, helping reduce microbial contamination before discharge or reuse.

Pulp and Paper Industry

Calcium hypochlorite can serve as a bleaching agent in selected pulp and paper processes.

Пищевая промышленность

Approved calcium hypochlorite formulations can be used for sanitation in food-processing facilities, subject to applicable regulatory requirements.

Surface Disinfection

Calcium hypochlorite is used in approved applications for disinfecting surfaces and equipment in industrial and institutional settings.

Drinking Water Treatment

Calcium hypochlorite is used for drinking-water disinfection, particularly in smaller treatment systems, where suitable product grades and dosing controls are

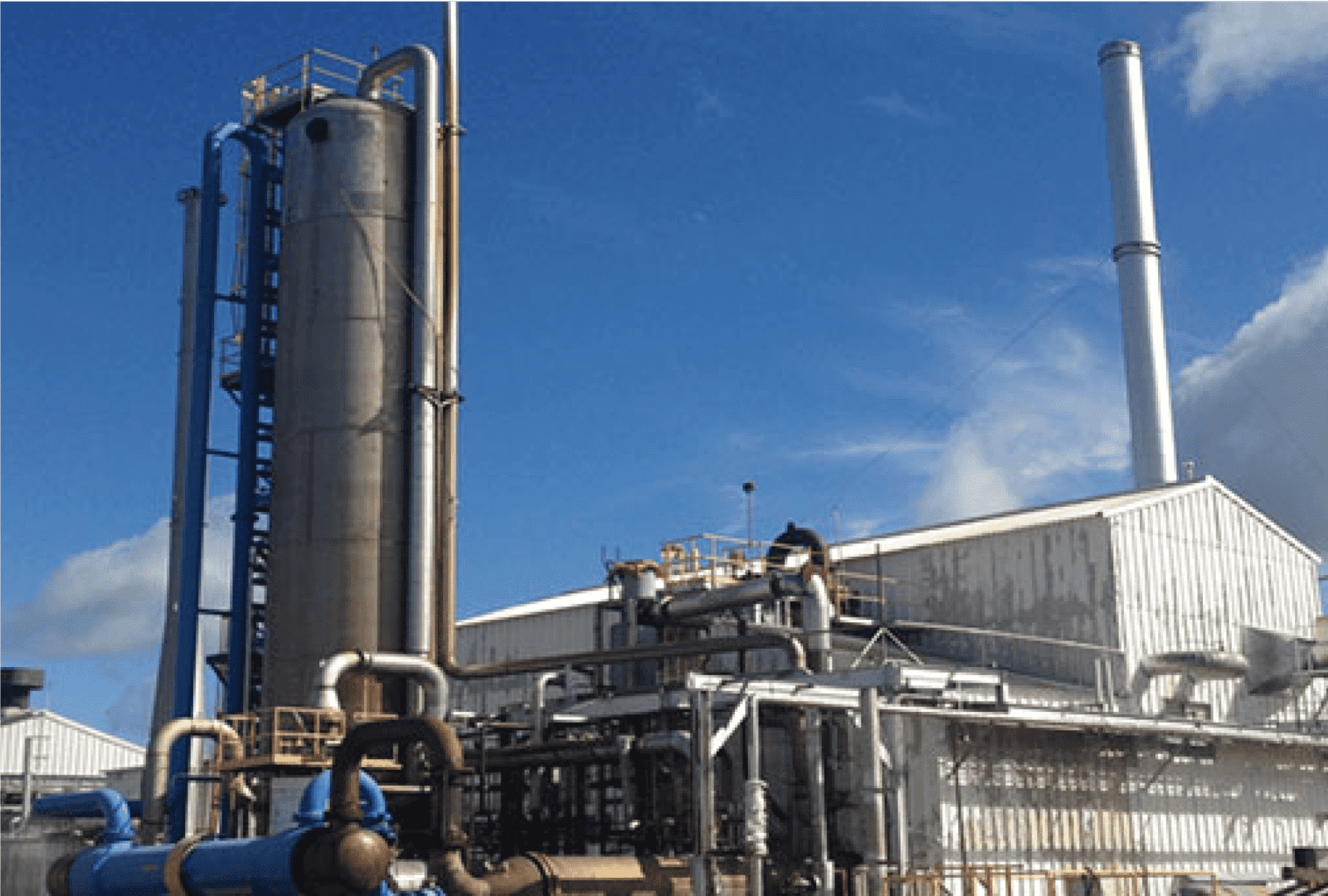

Ссылка Проекты

Завод по производству гипохлорита кальция мощностью 12 000 тонн в год

(Shandong, 2015)

Завод по производству гипохлорита кальция мощностью 10 000 тонн в год

(South America, 2024)

Связаться с LUVA

Planning a calcium hypochlorite plant? Contact LUVA to discuss process technology, engineering,
equipment supply and project delivery services.
